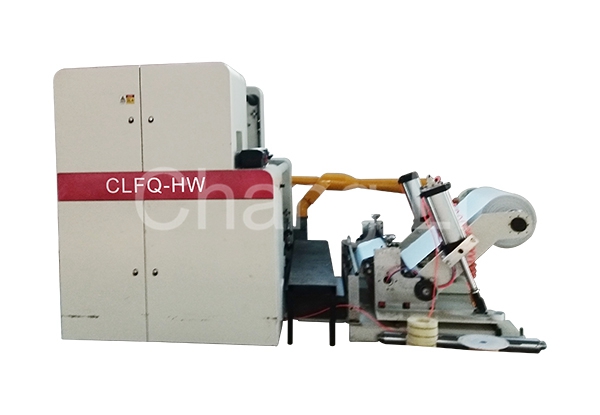

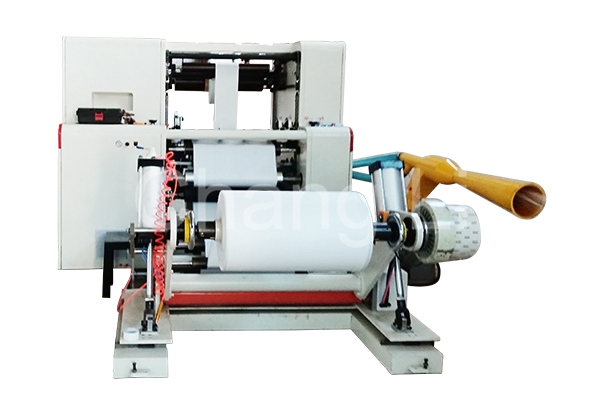

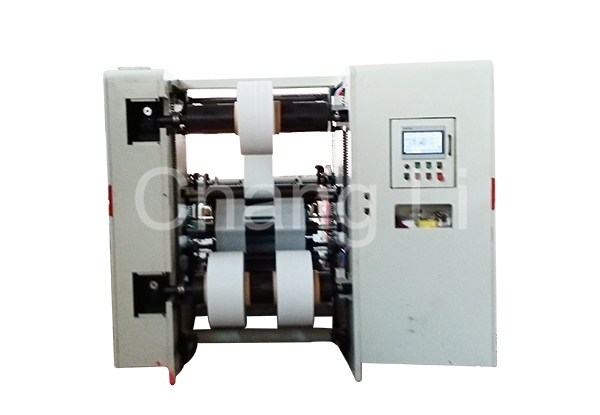

CLFQ-HW型电脑高速自动分切机

发布日期:[2022-06-02]     点击率:

产品说明

  适用范围

  本机适用于各种超大型卷材的分切,如30g/m2-300g/m2牛皮纸、白卡纸、淋膜纸、铝箔、PVC塑料、编织袋、锡纸等卷材的分切、复卷等。

  性能及特点

  1. 该机采用异步伺服电机(矢量电机)控制、自动锥度张力,中心卷取方式。主机采用变频调速,保持加速中平衡运转。

  2. 自动计米、报警功能。收卷采用A、B气胀轴结构,卸装操作方便。

  3. 放卷采用光电自动纠偏修正系统,使不规则材料能正常分切。

  4. 圆刀纵切废边自动排放装置。

5. 油压式自动上料,配气胀轴。

6.导轨式自动下料装置。也可单边打开卸料!

product manual

Scope of application

This machine is suitable for the slitting of various super-large coils, such as slitting and rewinding of 30g/m2-300g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, Woven bag, tin foil and other coils.

Performance and characteristics

1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension and center winding method. The main engine adopts frequency conversion speed regulation to maintain balanced operation during acceleration.

2. Automatic metering and alarm function. The winding adopts the A and B air expansion shaft structure, and the unloading operation is convenient.

3. Unwinding adopts photoelectric automatic correction correction system to make irregular materials cut normally.

4. The circular knife cuts the waste side automatic discharge device.

5. Hydraulic automatic feeding, with air expansion shaft.

6. Rail type automatic cutting device. The unloading can also be opened unilaterally!





主要技术参数:Main Technical Parameters

机型 Model

CLFQ-W800

CLFQ-W1300

zui大原料宽度MAX. Width of raw material

800mm

1300mm

zui大放卷直径Max.parent Web Diameter

Φ1400mm

Φ1400mm

zui大收卷直径Max.Rewinding Diameter

Φ1100mm

Φ1100mm

zui高机械速度 Max.Machine Speed

10-400m/min

10-400m/min

总功率 Total Power

22KW

25KW

重量 Machine Weight

4000kg

4800kg

外形尺寸 Overall Dimensions

2500×2900×2000mm

3000×2900×2000mm

zui小分切宽度 Min.Slitting Width

50mm


可根据产品要求 特殊订制设备。

Can be made according to the product requires special equipment.





延伸出来关键词:编织袋内阀膜分切机,阀口袋膜分切机
