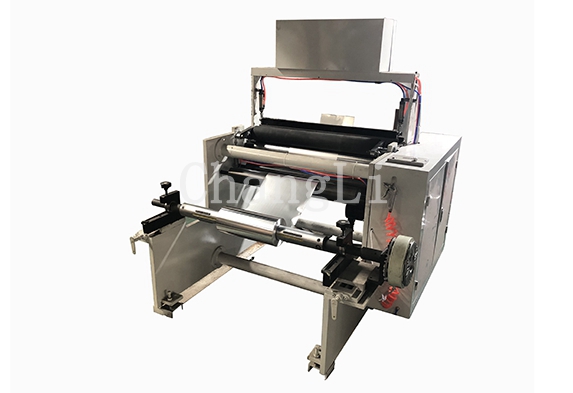

CLFJ-600型自动复卷机

发布日期:[2018-08-17]     点击率:


机型
Model

FJ-600

FJ- 800

FJ-1000

卷材宽度
MAX.Parent Web Width

600mm

800mm

1100mm

放卷直径
Max.parent Web Diameter

Φ600mm

Φ600mm

Φ600mm

收卷直径
Max.Rewinding Diameter

Φ260mm

Φ260mm

Φ260mm

速度
Max.Machine Speed

10-190m/min

10-190m/min

10-190m/min

总功率
Total Power

2.3KW

3KW

3KW

重量
Machine Weight

800kg

900kg

1000kg

外形尺寸
Overall Dimensions
工作电压
Working Voltage

1500×1300×1700mm
     二相220V50HZ

1500×1500×1700mm
     二相220V50HZ

1500×1700×1900mm
     二相220V50HZ


用途:

该机是生产硬纸芯、软纸芯、等小卷筒纸(礼品纸、广告纸、墙纸、各种包装纸)的专用设备。


特点:

放卷:可调节式放卷架

收卷:连续式气涨轴、电脑控制充气与打开(可任意调节收卷轴直径)

切断:采用上下式横切刀

主控:微电脑控制,具有准确的计米及较高的自动化操作性能

具有定长精度高,收卷整齐,操作简便,外型美观,性能稳定等功能,还可以和全自动收缩包装机配套形成生产线。


use:

This machine is a special equipment for producing hard paper core, soft paper core, and other small webs (gift paper, advertising paper, wallpaper, various wrapping paper).


Features:

Unwinding: Adjustable unwinding rack

Winding: continuous air-up shaft, computer controlled inflation and opening (can adjust the reel diameter arbitrarily)

Cut off: use upper and lower cross cutter

Master: Microcomputer control with precise metering and high automation performance

It has the functions of high fixed length precision, neat winding, simple operation, beautiful appearance and stable performance. It can also form a production line with automatic shrink packaging machine.
